AHULab
Customizable AHU design software for building unit sections, specifications, and performance calculations with professional submittal. Enables quick and efficient selections for engineers, distributors, consultants, and customers.
Software Features
- Over 30 standard and optional AHU sections.

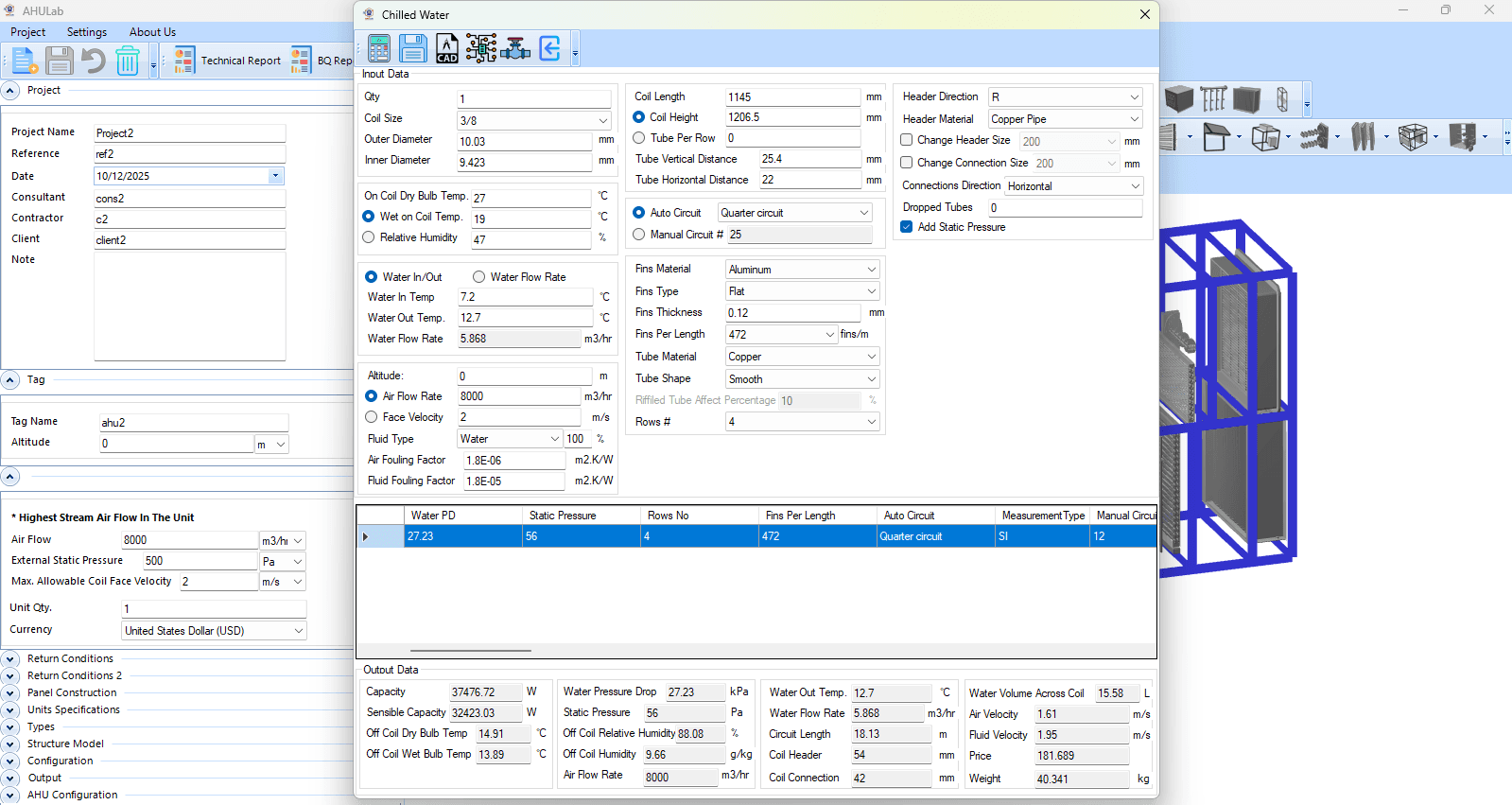

- Design and simulation of coils (chilled water, hot water, steam, and DX) with full refrigerant support.

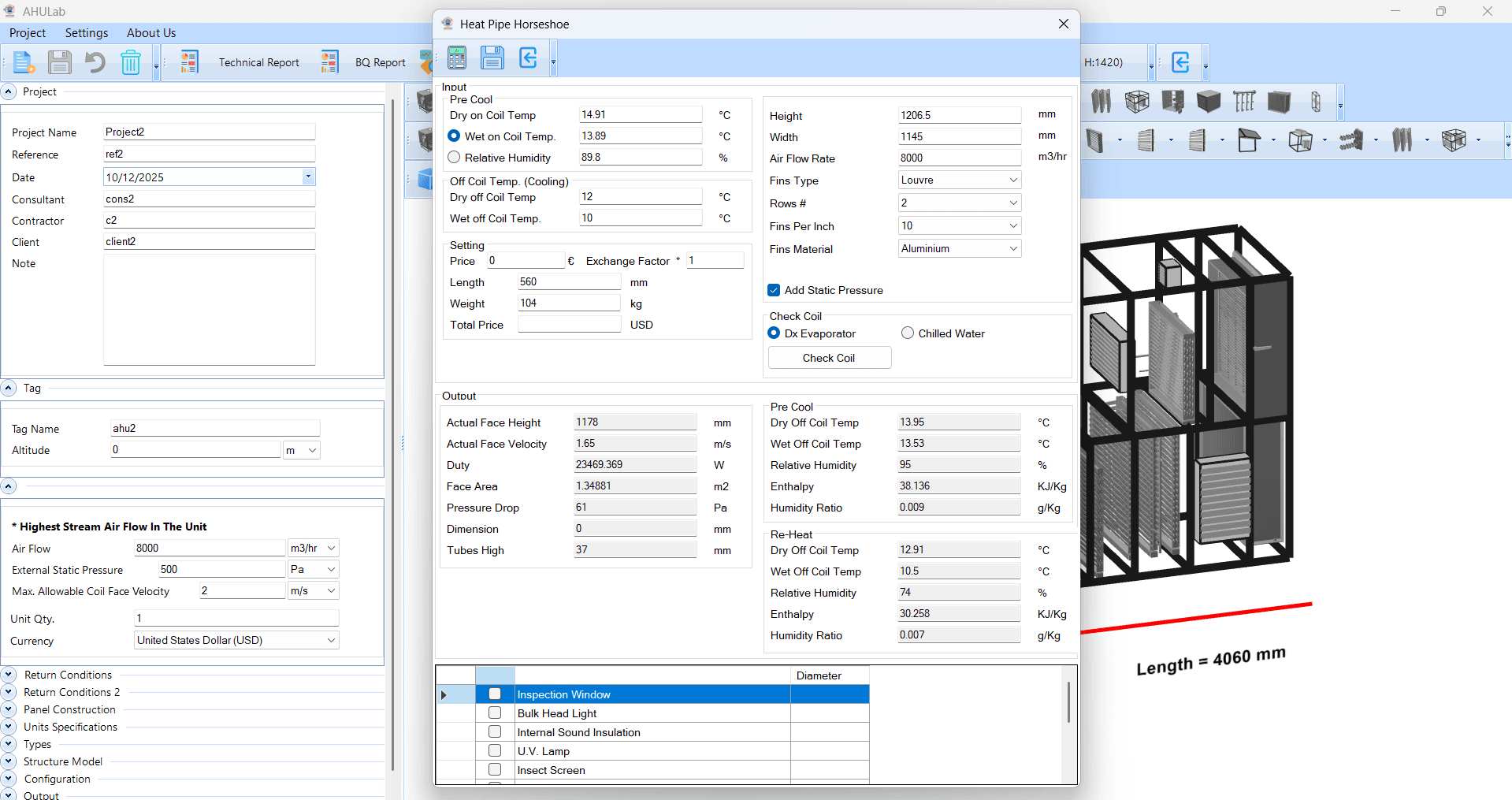

- Design and simulation of heat pipes (horseshoe heat pipe and heat recovery types).

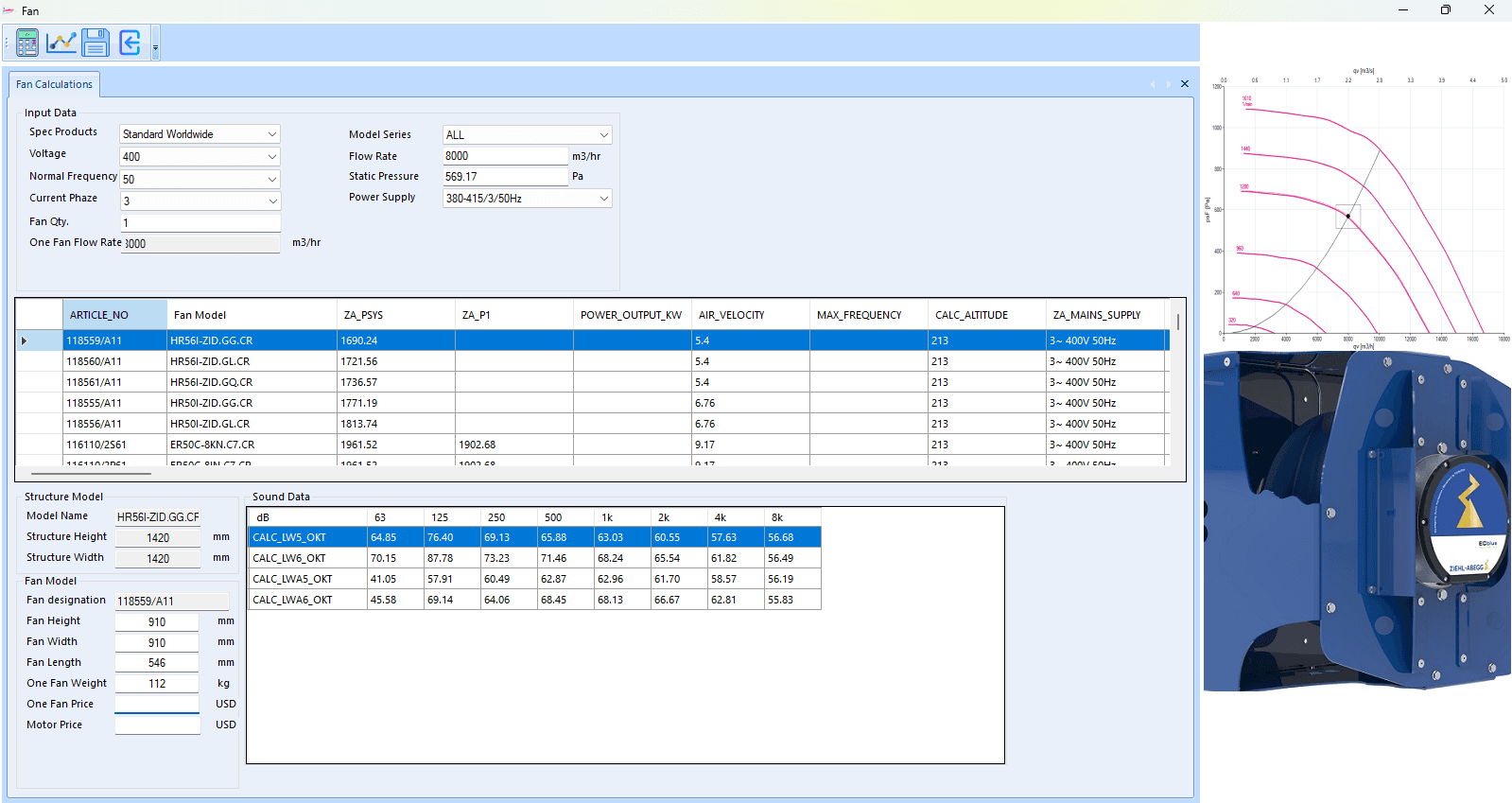

- Design and simulation of fans with multiple supported brands.

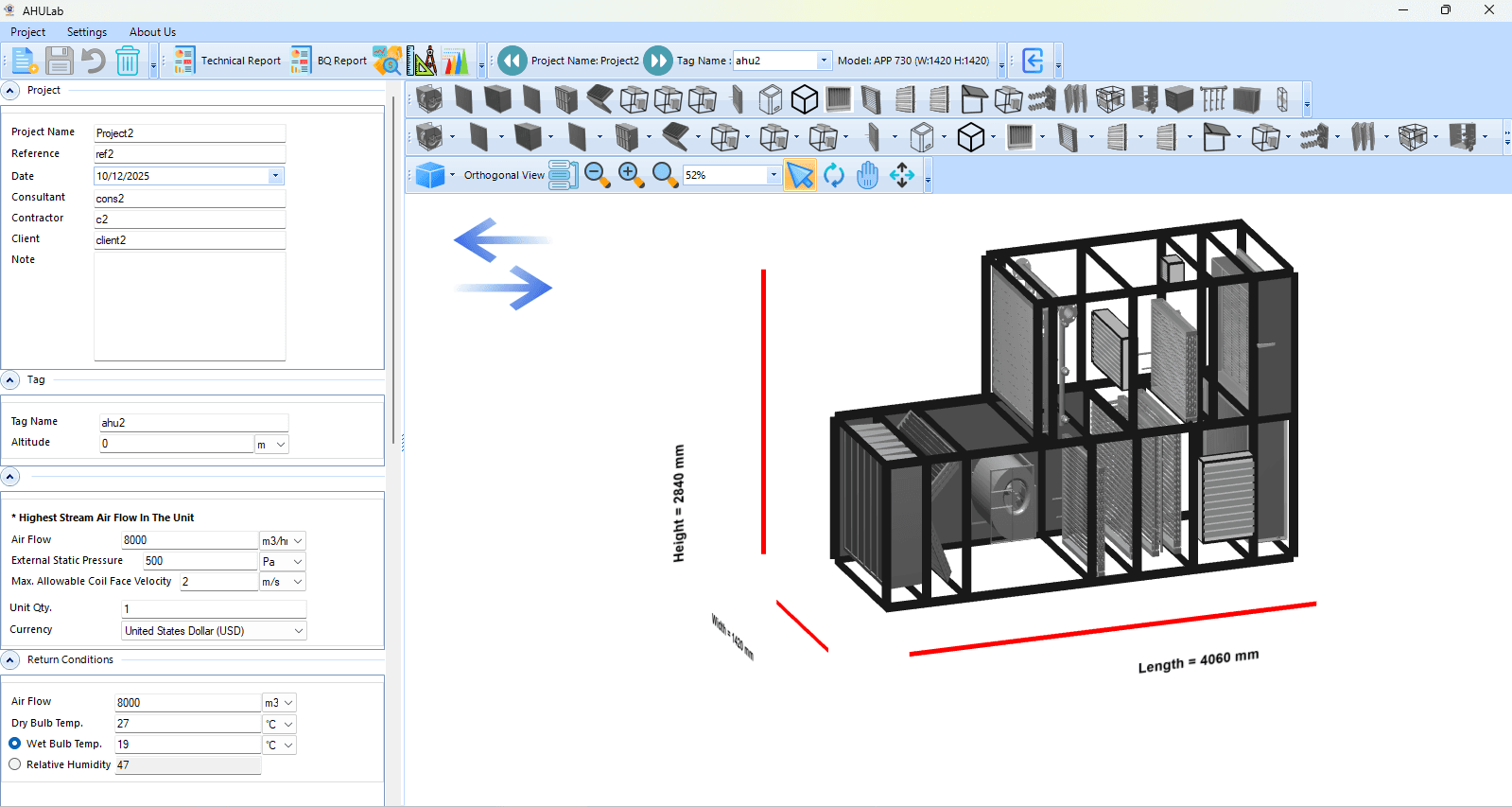

- Design single-deck and double-deck air handling units.
- Design and simulation of heat recovery systems including thermal wheels and plate-type heat exchangers.
- Design and simulation of economizer systems.
- Design and simulation of electric heaters.
- Design and simulation of steam humidifiers.
- Support for various insulation types: injected foam, fiberglass, rock wool, and polyurethane with customizable densities.
- Construction thickness options: 25, 30, 42, 50, and 60 mm.
- Casing material options: galvanized steel and stainless steel with thicknesses from 0.5 to 1.5 mm.
- Profile material options: aluminum, mild steel, galvanized steel, PVC, and thermal break.
- Support for horizontal and vertical unit configurations.
- Raw material cost estimation (aluminum, copper, stainless steel).
- Component cost estimation for motors, fans, and filters with automatic pricing based on margin.
- Editable prices with multi-currency rate support.
- Supported fan brands: Nicotra, Comefri, EBM, Ziehl-Abegg, Kruger, Yilida.
- Supported motor brands: Leroy Somer, Siemens, Teco, WEG.
- Supported heat recovery plate HEX brands: HeaEx, Klingenberg, Hoval, Recuperator.
- Supported heat pipe brands: Applied Heat Pipe Software and SPC.
- Ability to add more brands upon agreement.
- Generated Bill of Quantity (BOQ) with complete details and pricing.
- Automatic unit weight calculation.
Standard Sections
Air Washer

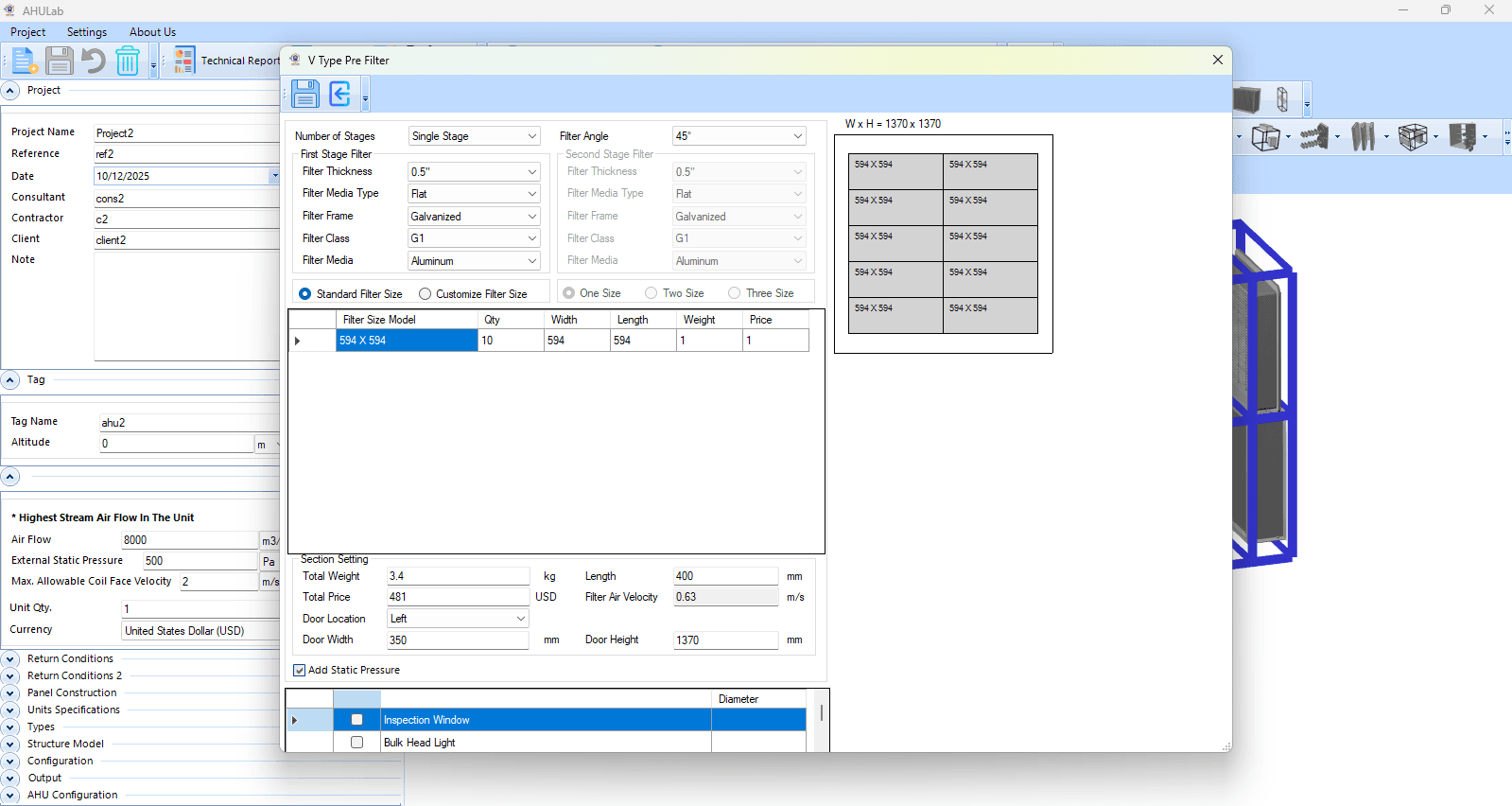

Pre Filter
Bag Filter
Hepa Filter
Electrostatic Filter
Bypass with Coil
Coil (Dx, Chilled Water, Heating and Steam)
Economizer - Mixing Box
Electric Heater
Eliminator
Access Section
Empty Section
Fan (Supply, Return, Exhaust and Fresh Air)
Fresh Air Louver
Fresh Air intake
Full Inlet Damper
Heat Recovery Section
Sand Trap Louver
Sound Attenuator
Steam Humidifier
Return Plenum
Supply Plenum
Exhaust Plenum
Optional Sections / Featurescan be included if required in your software version
Air Cooled Condensing Unit
Water Cooled Condensing Unit
Hot Gas Reheat
Hepa Filter
Desiccant dehumidifier thermal wheel
Duct Furnace Section
Heat pipe heat recovery
Heat pipe horse shoe
Special output report
Panel Design with AutoCAD and DXF drawings with details
