CoilLab
CoilLab Design & Simulation Software is done for (designers, consultants, contractors, researchers & developers), it have all the facilities required by the user with professional complete technical report, so we did this software for coil design and performance calculations for many applications.
Software Features

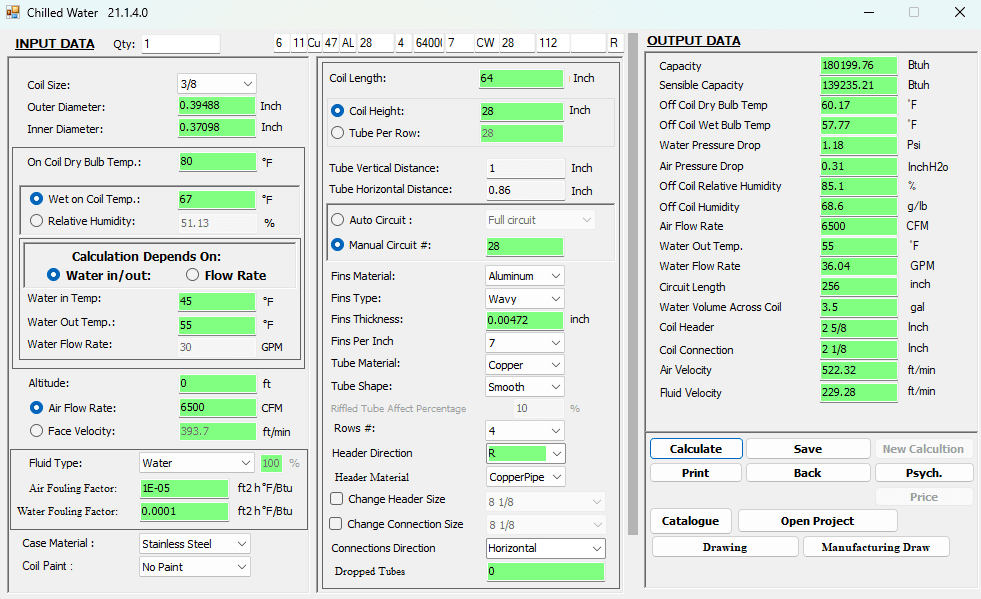

- Full control and analysis of all variables affecting coil performance.
- Support for entering water flow rate or water inlet/outlet temperatures where applicable.

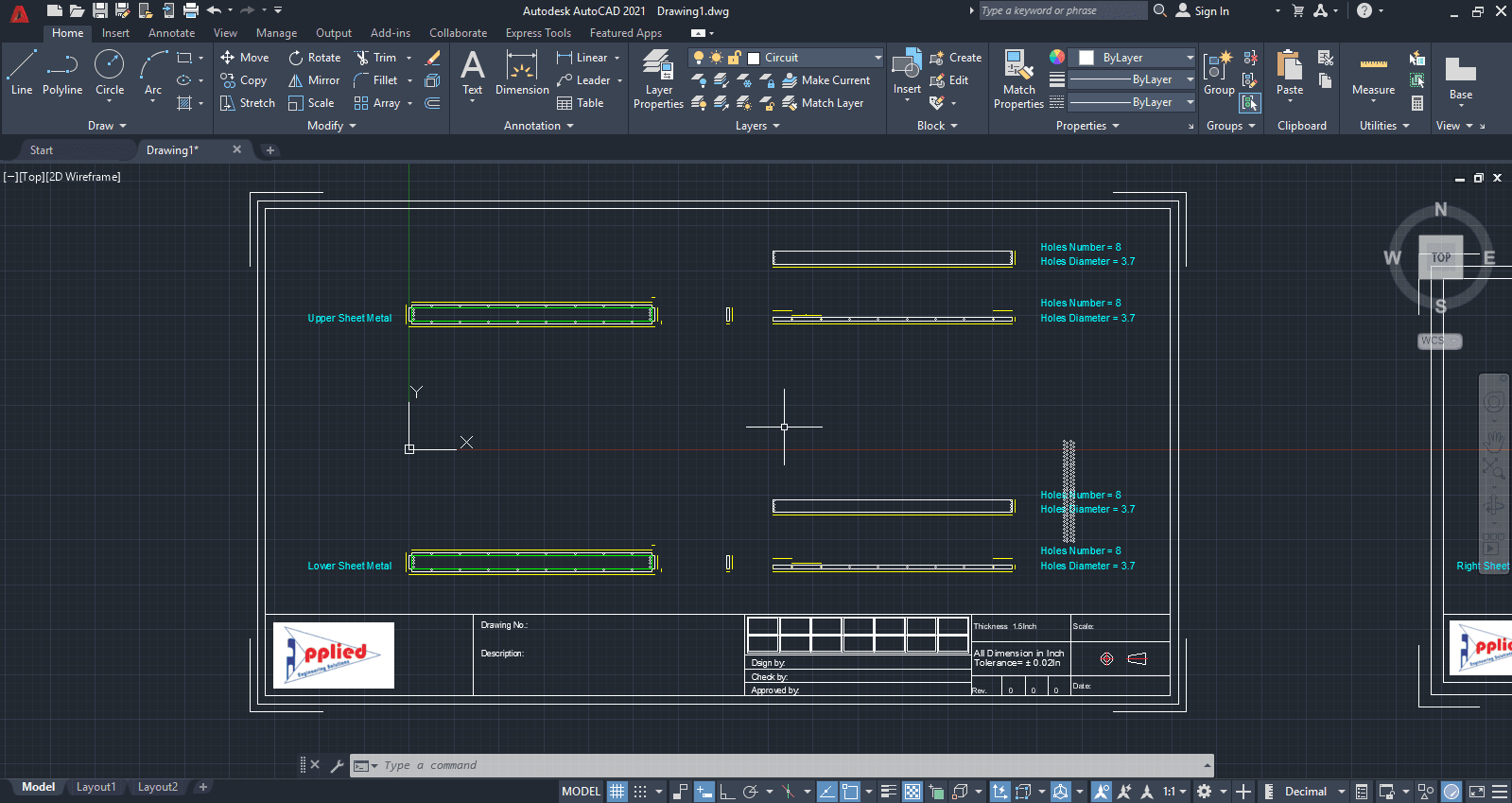

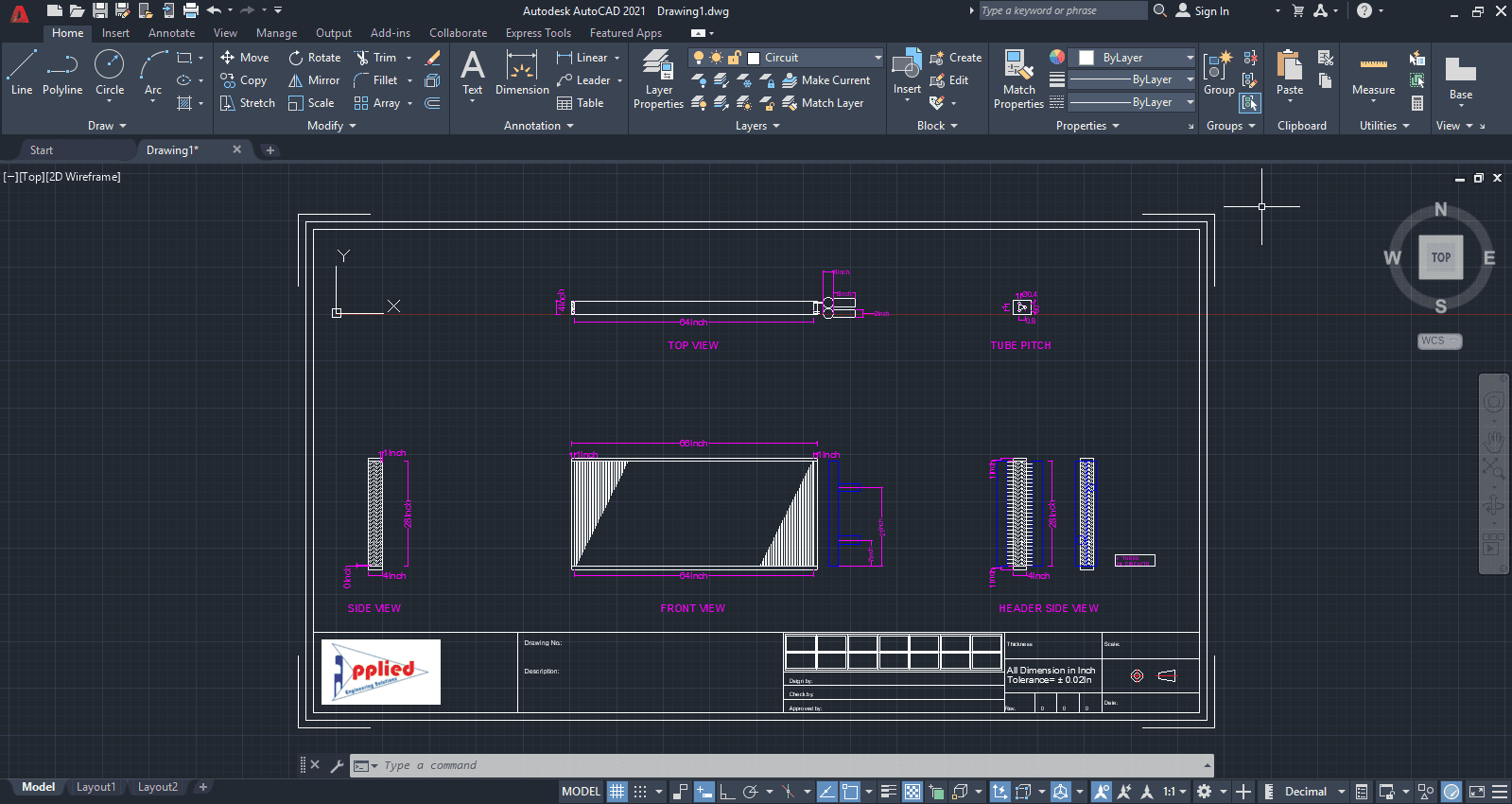

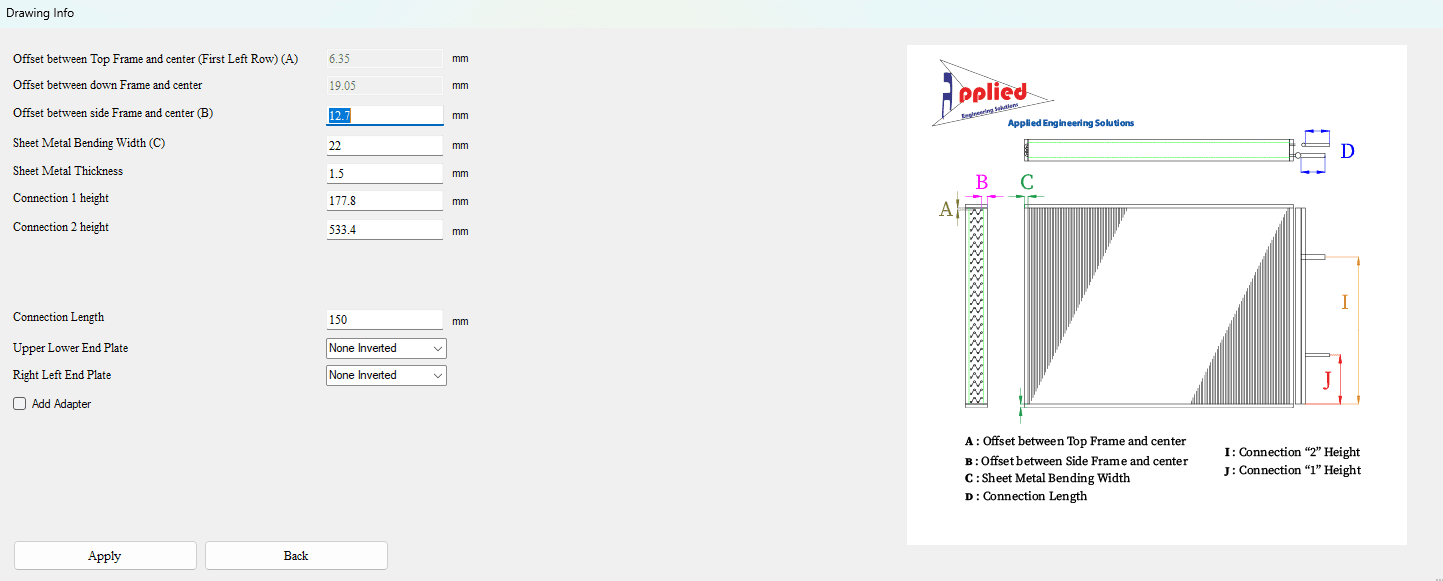

- Generation of 2D dimensional CAD drawings.
- Calculations performed according to AHRI 410 specifications.
- Automatic circuit drawing with Auto Circuit Mode.
- Selection of working fluids including ethylene glycol, propylene glycol, or water with any concentration percentage.
- Support for seven applications: chilled water, water heating, evaporators, condensers, evaporative condensers, four-pipe systems, and steam coils.
- Comprehensive capacity and coil specification results, sorted from the most economical to the least economical configuration.
- Ability to perform calculations in either SI or Imperial units.
- Project saving and retrieval functionality.

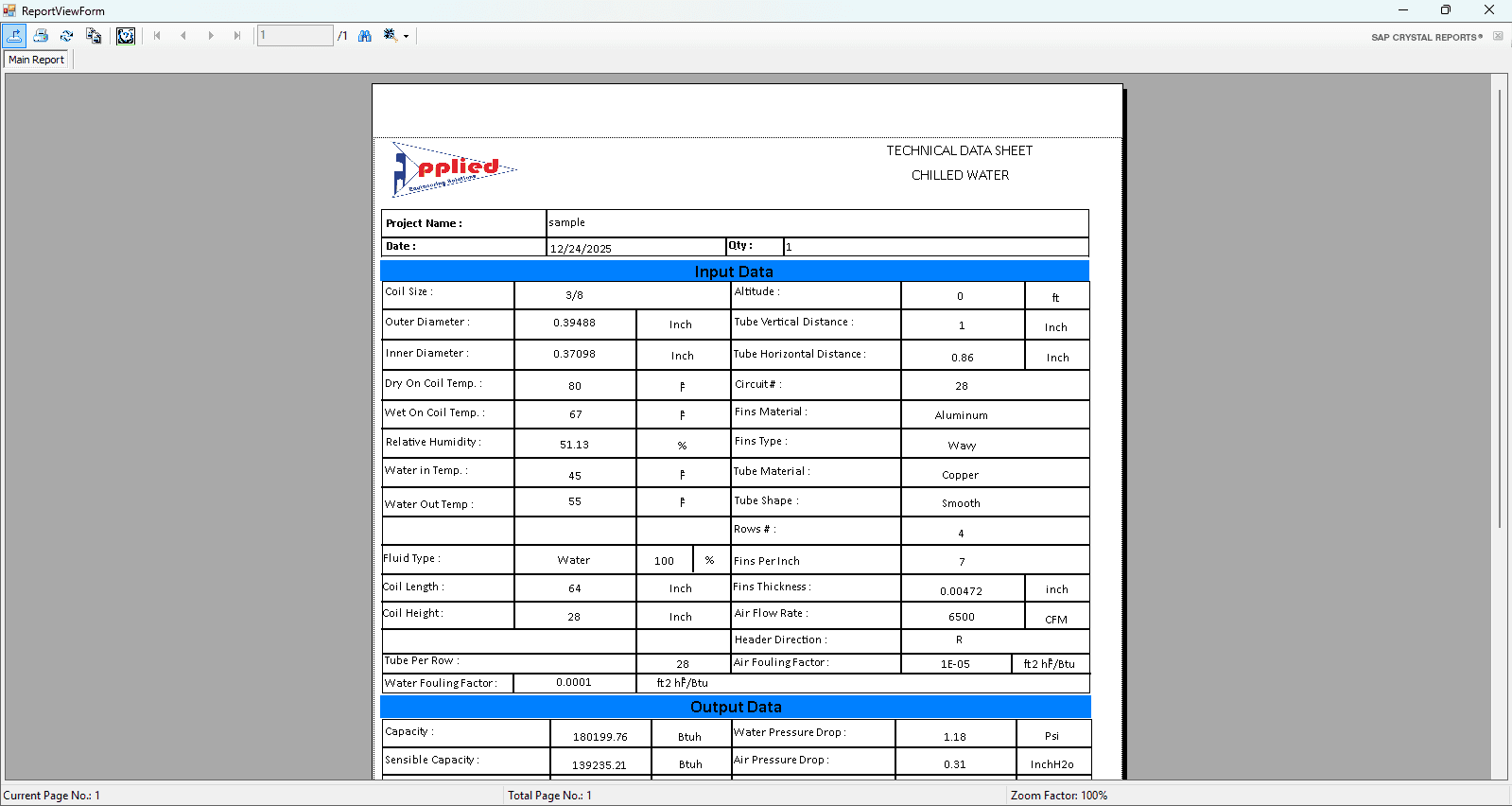

- Professional technical reports customizable with company branding.

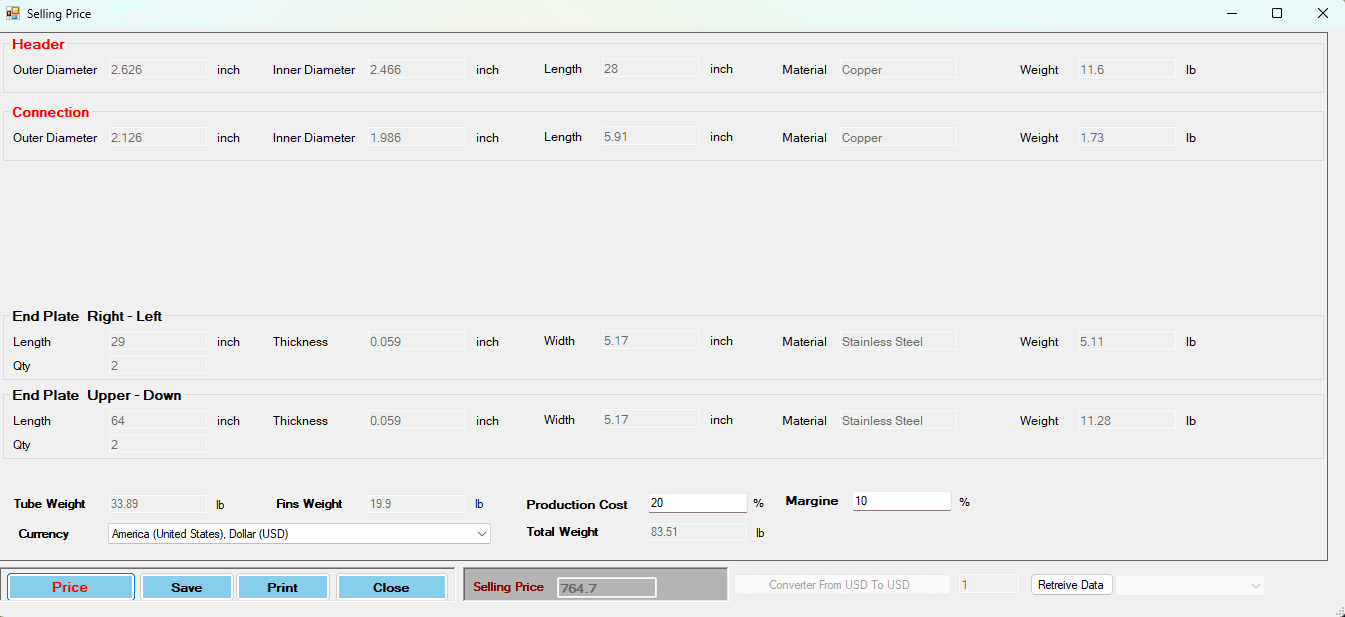

- Integrated pricing module including cost analysis for copper, aluminum, and galvanized steel based on calculated material weights.
- Warning and message management system to prevent incorrect selections.
- Support for multiple fin types.
- Support for smooth and enhanced tube technologies.
- Support for multiple tube sizes.
- Automatic and manual sizing of headers and connections.

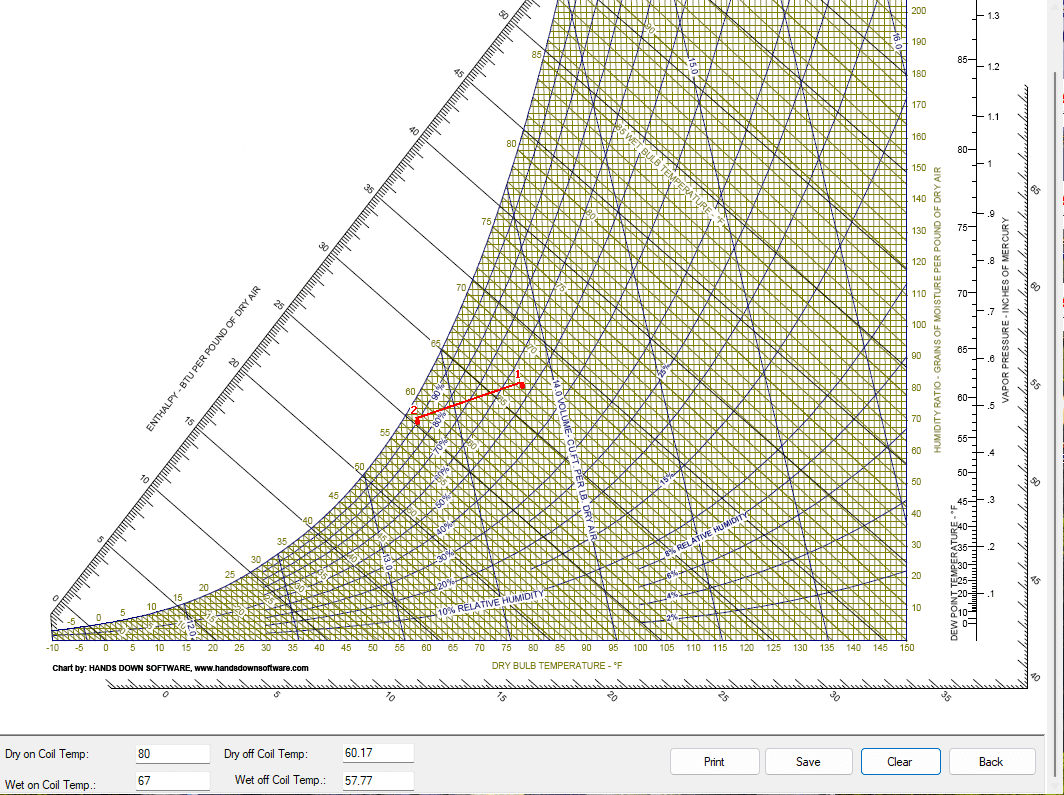

- Integrated psychrometric chart where applicable.
- Support for a wide range of operating temperatures.
- Database containing data for many new refrigerants.
